JOURNEYMAN

An amp-style overdrive with three-band EQ and an independently switched JUICE stage.

KNOBS: Bass · Middle · Treble · Drive · Level · Juice
SWITCH: TIGHT / NORM
FOOTSWITCHES: JUICE / ON
POWER REQUIREMENT: DC 5 V – 15 V · max 250 mA adapter

SOLD OUT

Sold out. Contact us for product information.

AUTHORIZED DEALER · HOLLYWOOD, CA, USA

◆ PRODUCT OVERVIEW / 01TONE & OPERATION

// OVERVIEW

JOURNEYMAN / PRODUCT DETAILS

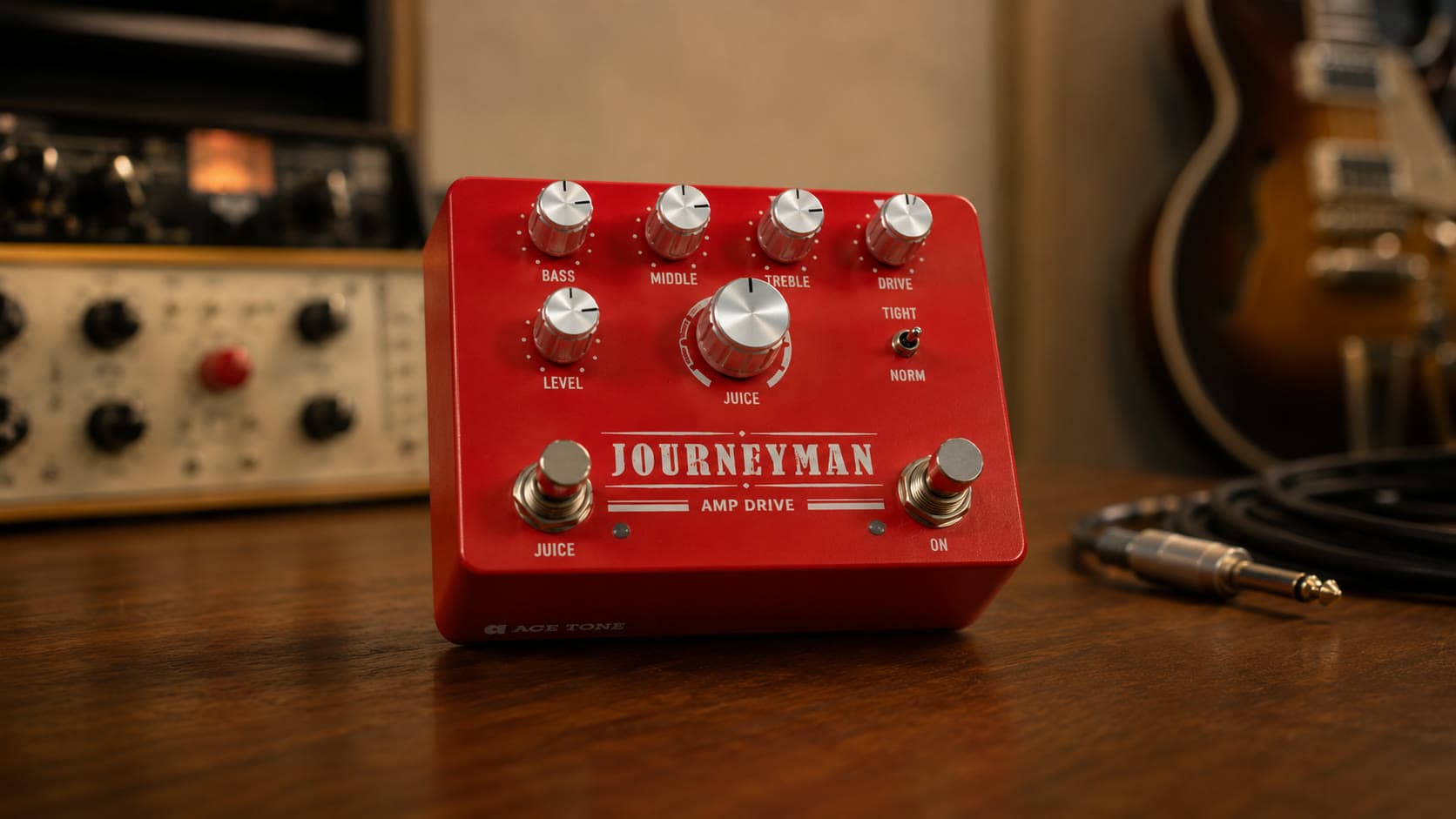

Journeyman brings amp-style tone shaping to the Master ACE series. BASS, MIDDLE and TREBLE form a three-band EQ, with a large JUICE control at the center. A dedicated footswitch engages the JUICE stage, while TIGHT / NORM changes the low-frequency response entering the drive circuit. The pedal comes in a red enclosure with the ACE TONE logo.

002 / MA-JMNPRODUCT PROFILE

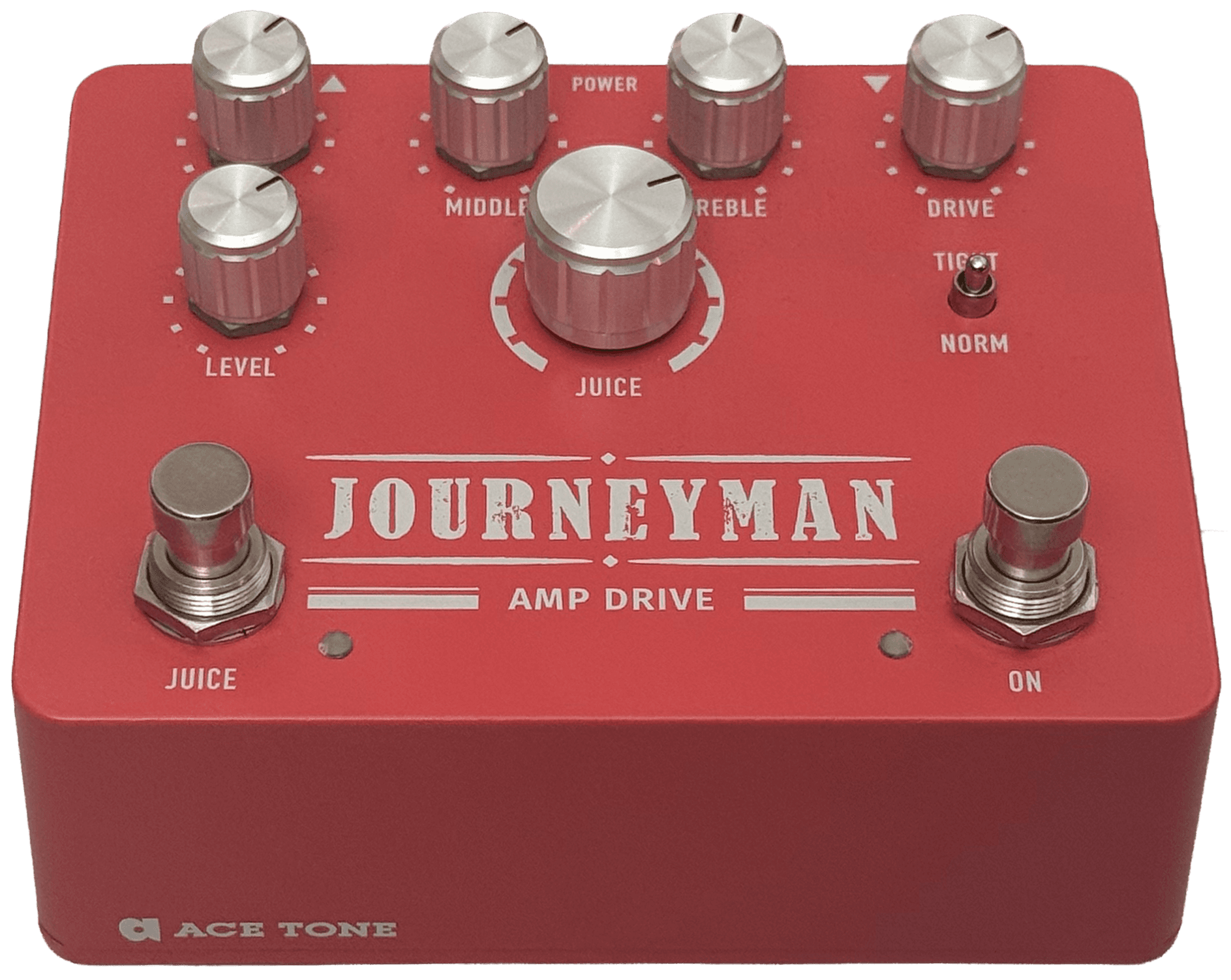

ACE TONE® Journeyman amp drive, isolated front three-quarter view

DESIGN & CONTROLS002 / MA-JMN

◆ PRODUCT IMAGES / 032 IMAGES

◆ PRODUCT PHOTOGRAPHS / 024 PHOTOGRAPHS

Select a photograph to view it at full size.

REF. 01 / CLEAN FRONT

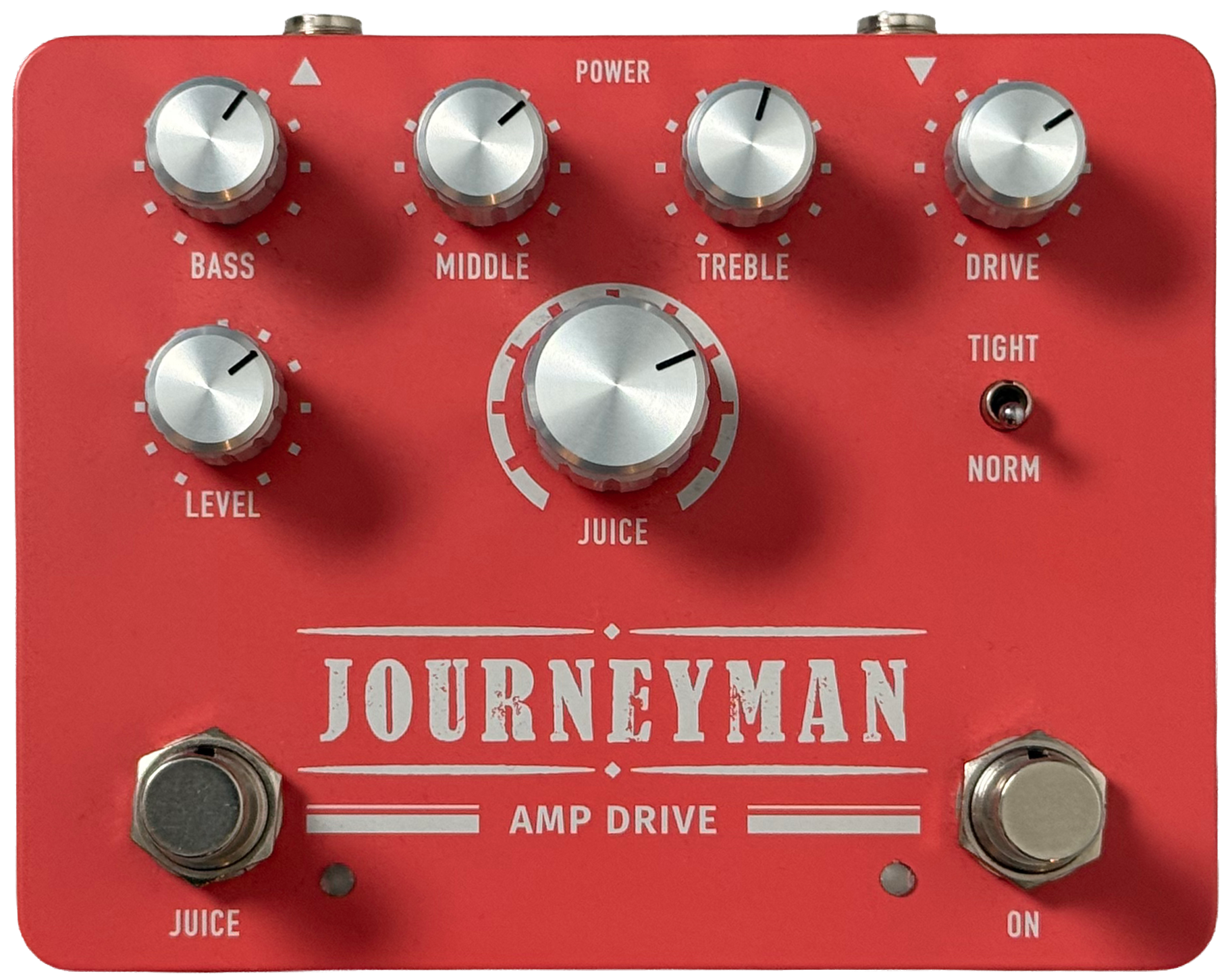

ACE TONE® Journeyman amp drive, isolated front view

FULL SIZE ↗

REF. 02 / CLEAN PROFILE

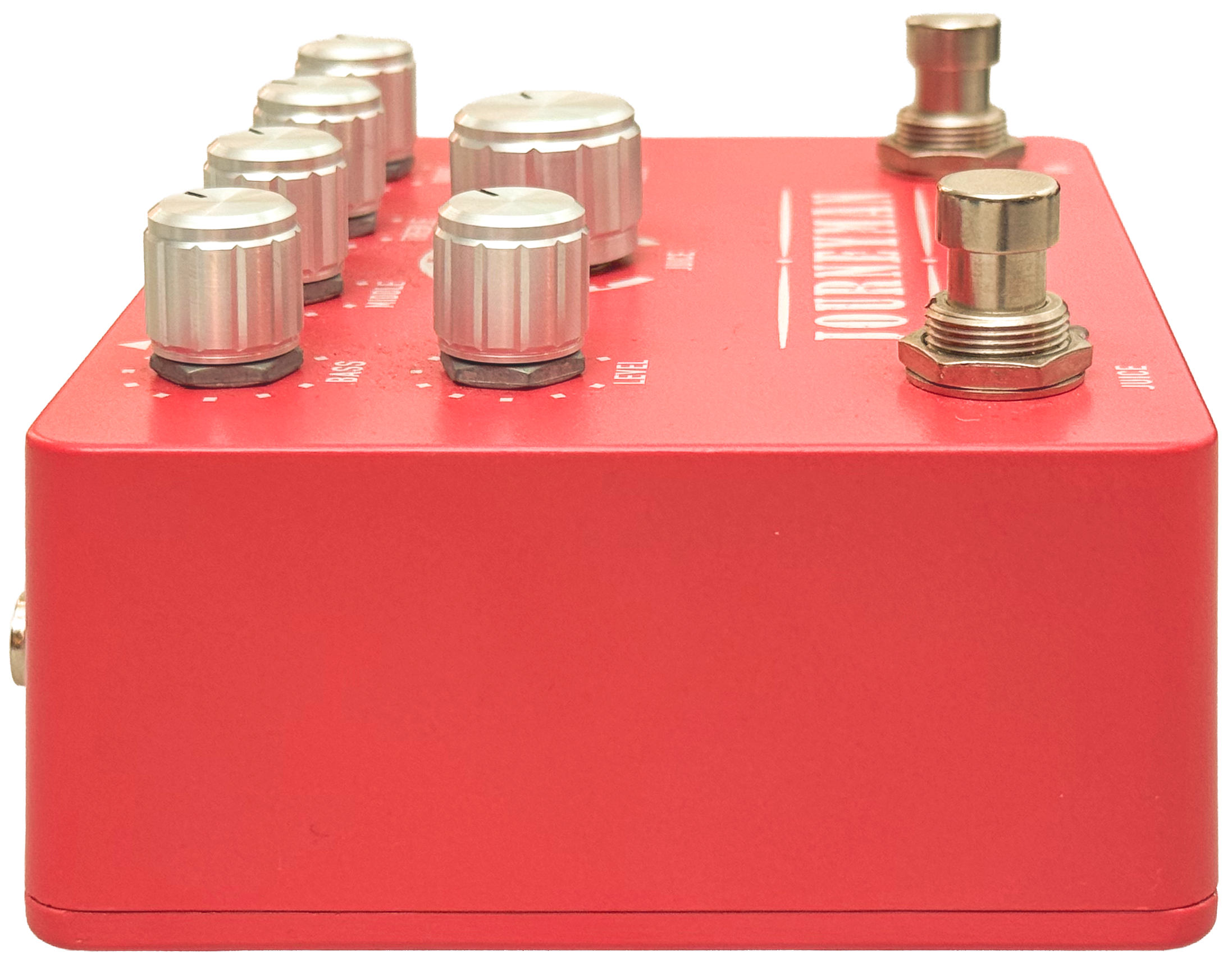

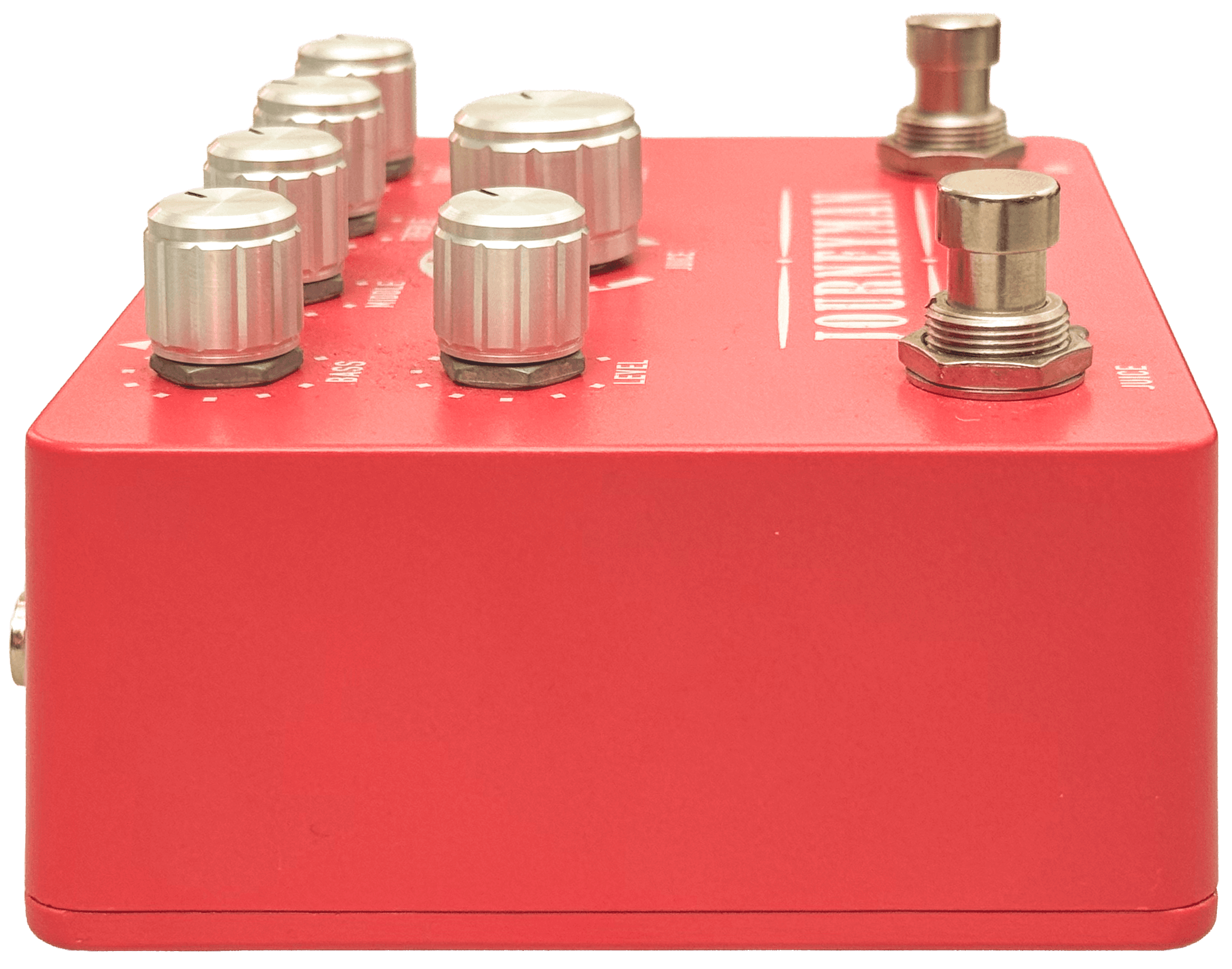

Journeyman low-angle profile study, side A

FULL SIZE ↗

REF. 03 / CLEAN PROFILE

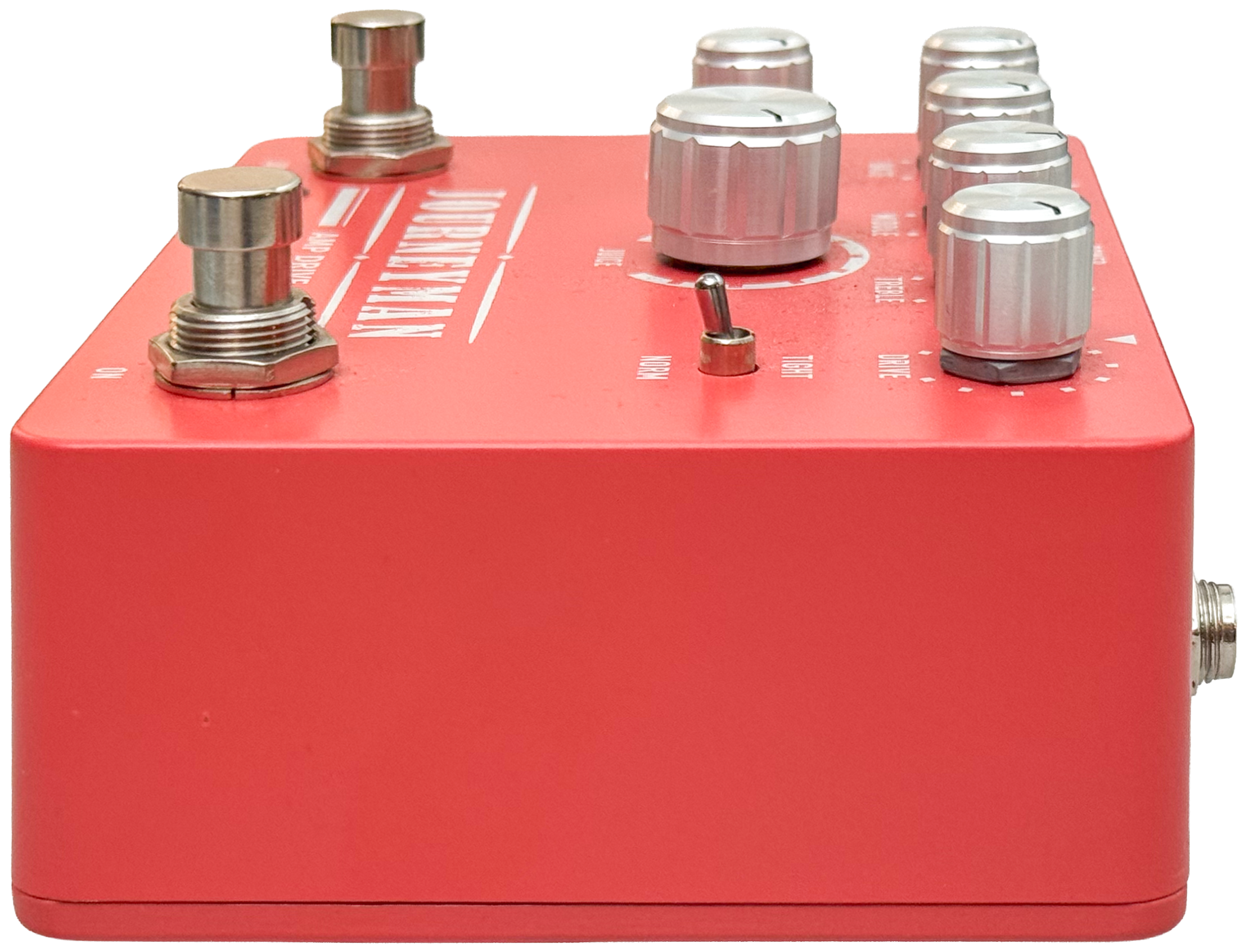

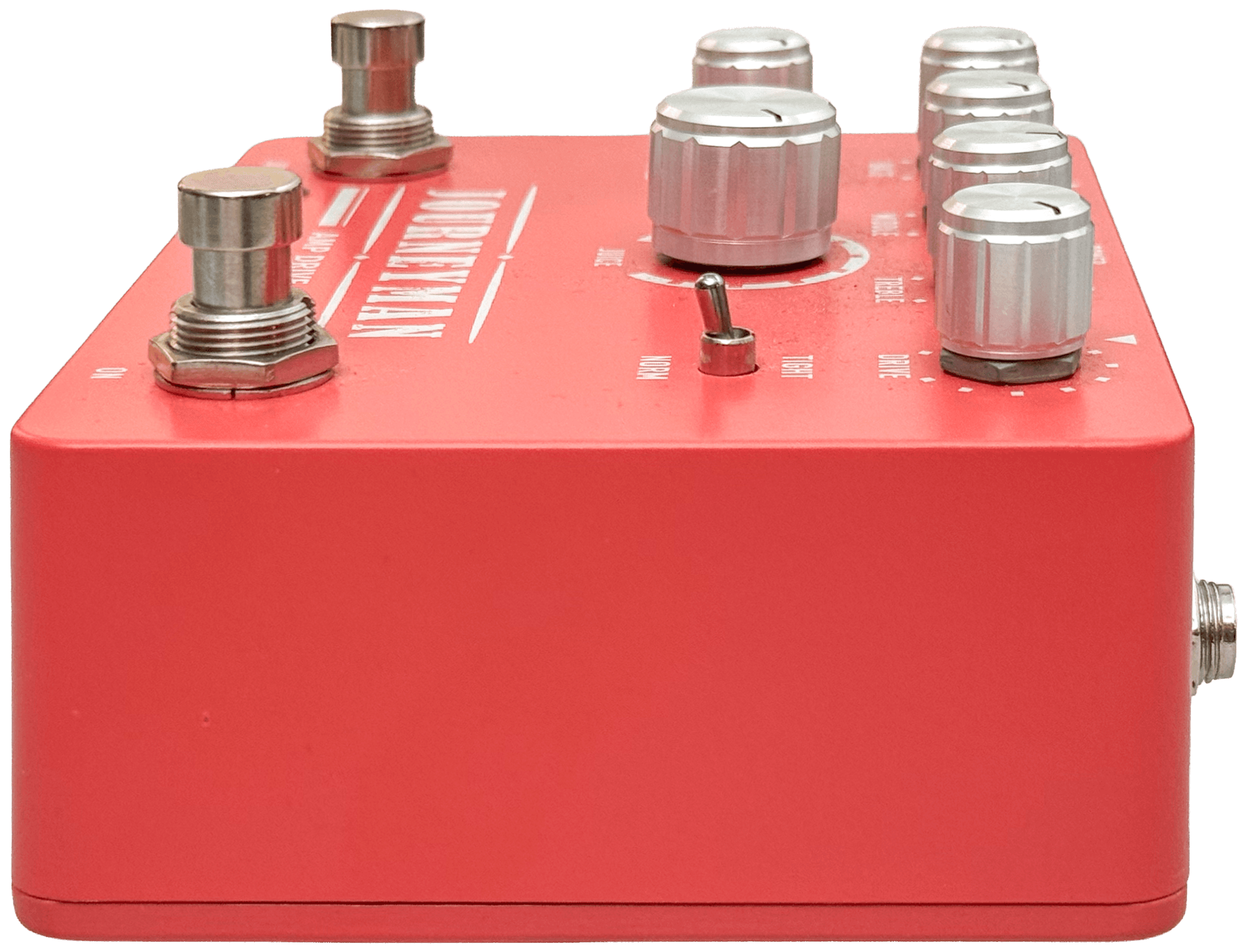

Journeyman low-angle profile study, side B

FULL SIZE ↗

REF. 04 / CLEAN REAR

Journeyman rear connection panel with DC input and audio jacks

FULL SIZE ↗

CONTROLSSOUNDSPECIFICATIONSMANUALS

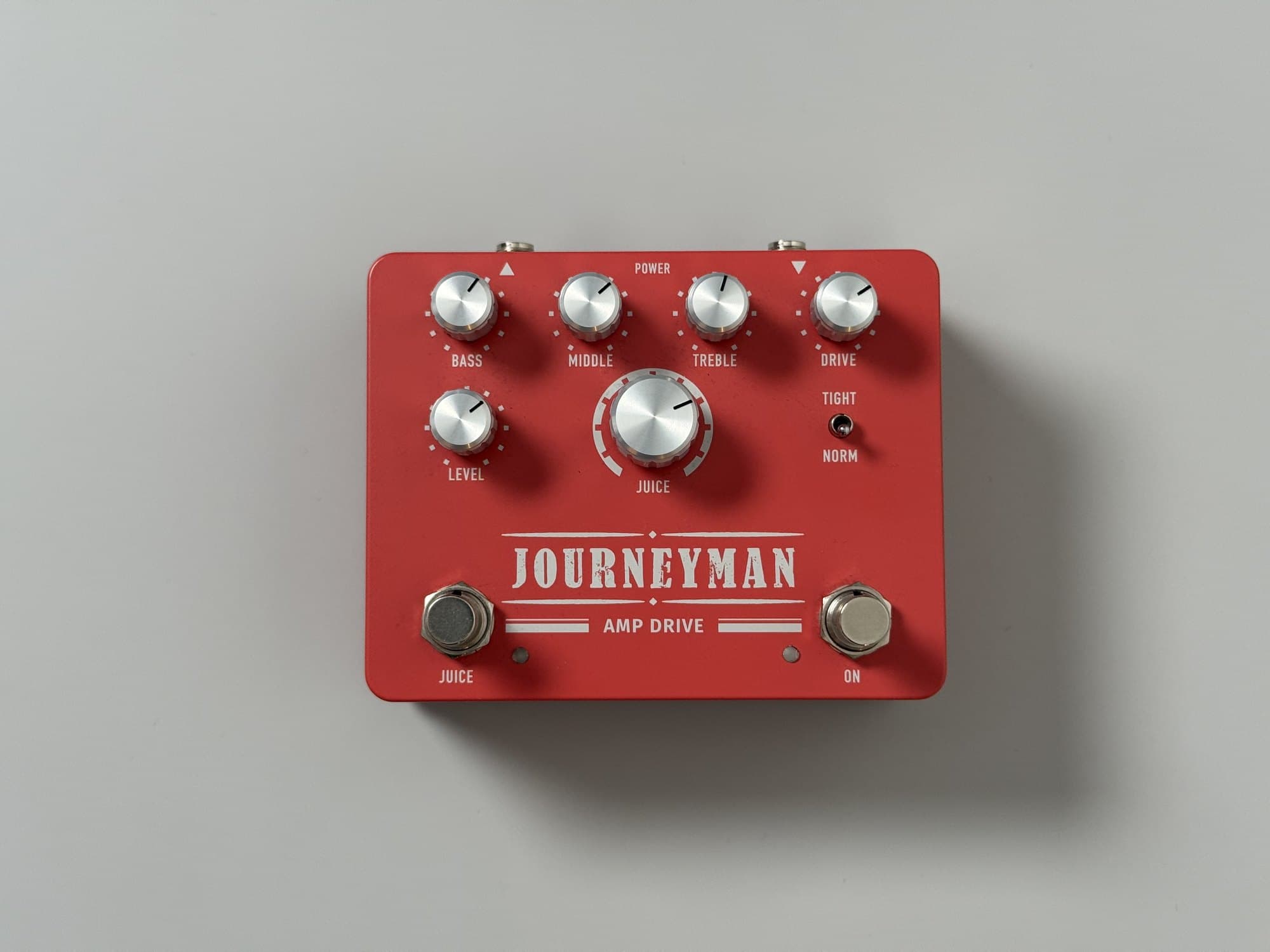

ACE TONE® Master ACE Journeyman — PRODUCT CONTROLS

PRODUCT CONTROLS002 / MA-JMN

CONTROLS / 08

USING THE CONTROLS

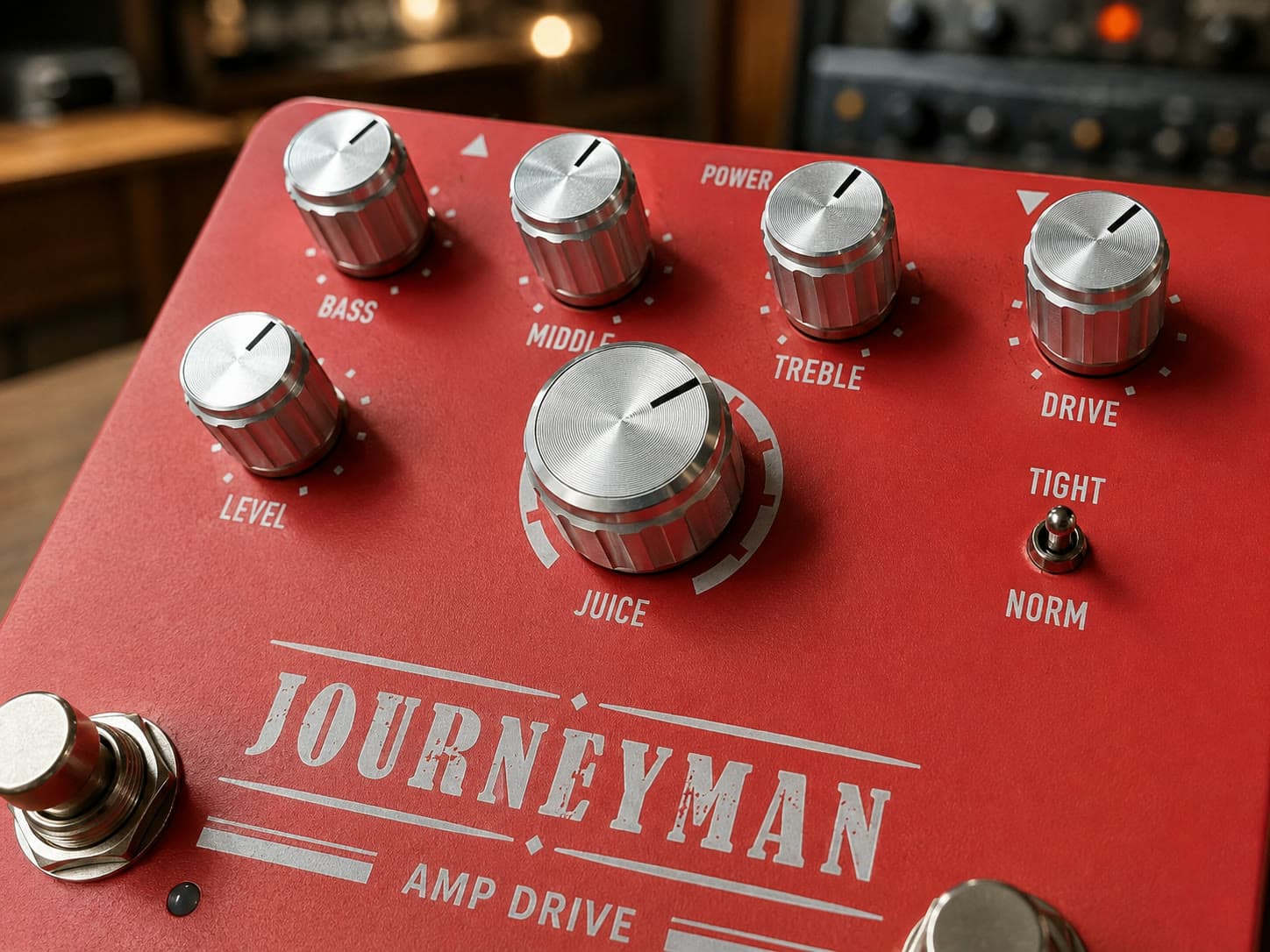

FRONT PANEL

BASS: Adjusts the bass response.
MIDDLE: Adjusts the midrange response.
TREBLE: Adjusts the treble response.
DRIVE: Sets the amount of drive.
LEVEL: Sets the output level.
JUICE: Adjusts the JUICE stage, which can be engaged with its dedicated footswitch.
TIGHT / NORM: Changes the low-frequency response entering the drive circuit.
FOOT SWITCH: JUICE engages the JUICE stage. ON switches the effect on or off.
