ACTIVE ACE

An active humbucker pairing alnico V magnets with an onboard low-noise preamp and low-impedance output.

MODEL: GH-631V
MODE: Contemporary / Traditional / Bright
COIL TAP: Single coil / humbucker · level compensated
POWER BOOSTER: +6 dB · entire frequency range

IN STOCK · SHIPPING NOW

Buy the Active Ace pickup from Performance Guitar. Confirm pricing, availability and installation with the dealer.

BUY NOW · PERFORMANCE GUITAR →AUTHORIZED DEALER · HOLLYWOOD, CA, USA

◆ PRODUCT OVERVIEW / 01TONE & OPERATION

// OVERVIEW

ACTIVE ACE / PRODUCT DETAILS

Active Ace combines alnico V magnets with an onboard low-noise preamp. Its low-impedance output preserves high-frequency detail over long cable runs without requiring changes to downstream gain settings. Final assembly takes place in California, with designs optimized for neck and bridge positions.

GH-631VPRODUCT PROFILE

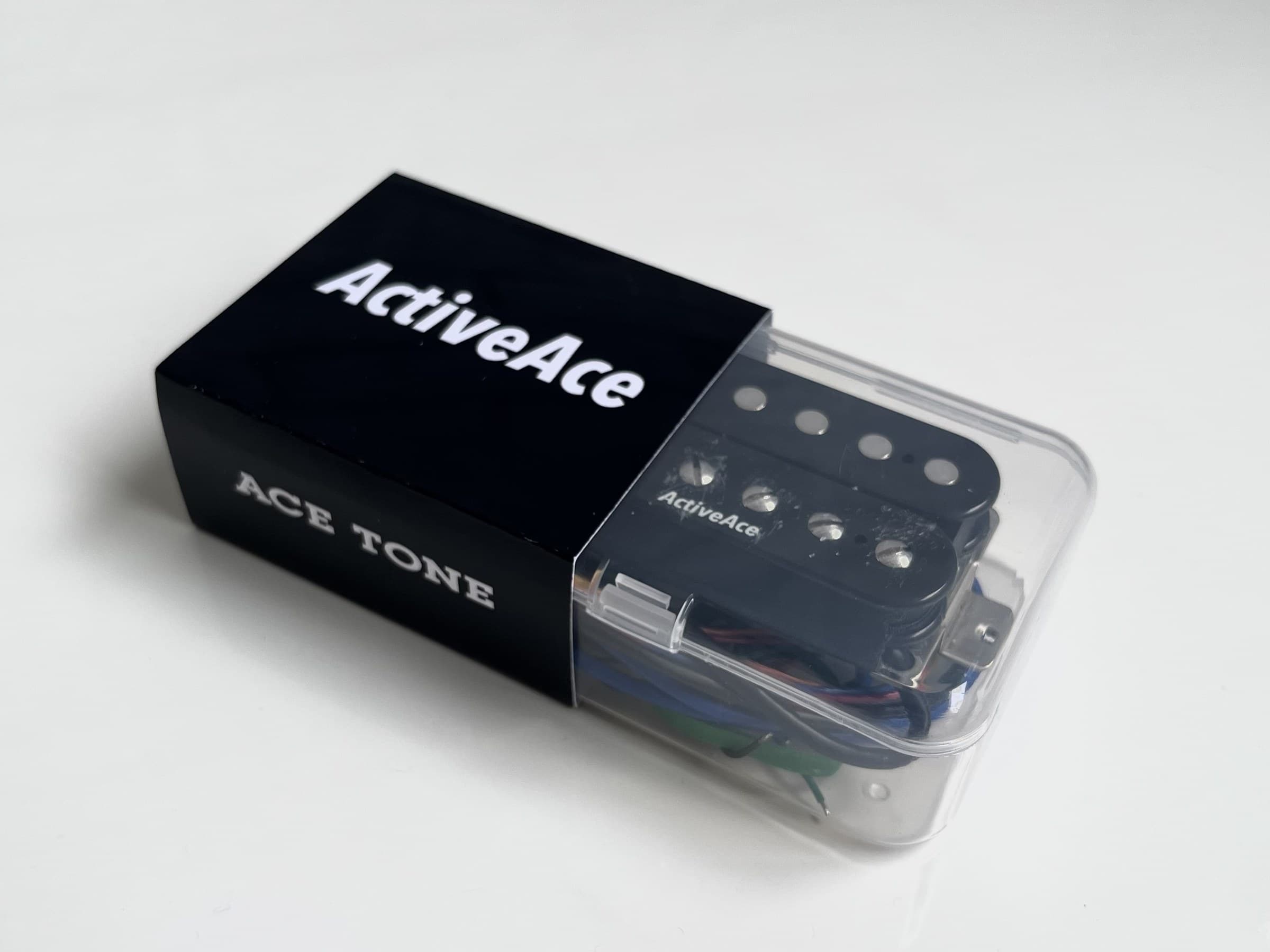

ActiveAce retail packaging, showing the ActiveAce mark on the face and the ACE TONE mark on the side, with the pickup visible through the clear case

DESIGN & CONTROLSGH-631V

◆ PACKAGING & PRODUCT PHOTOGRAPHS / 022 IMAGES

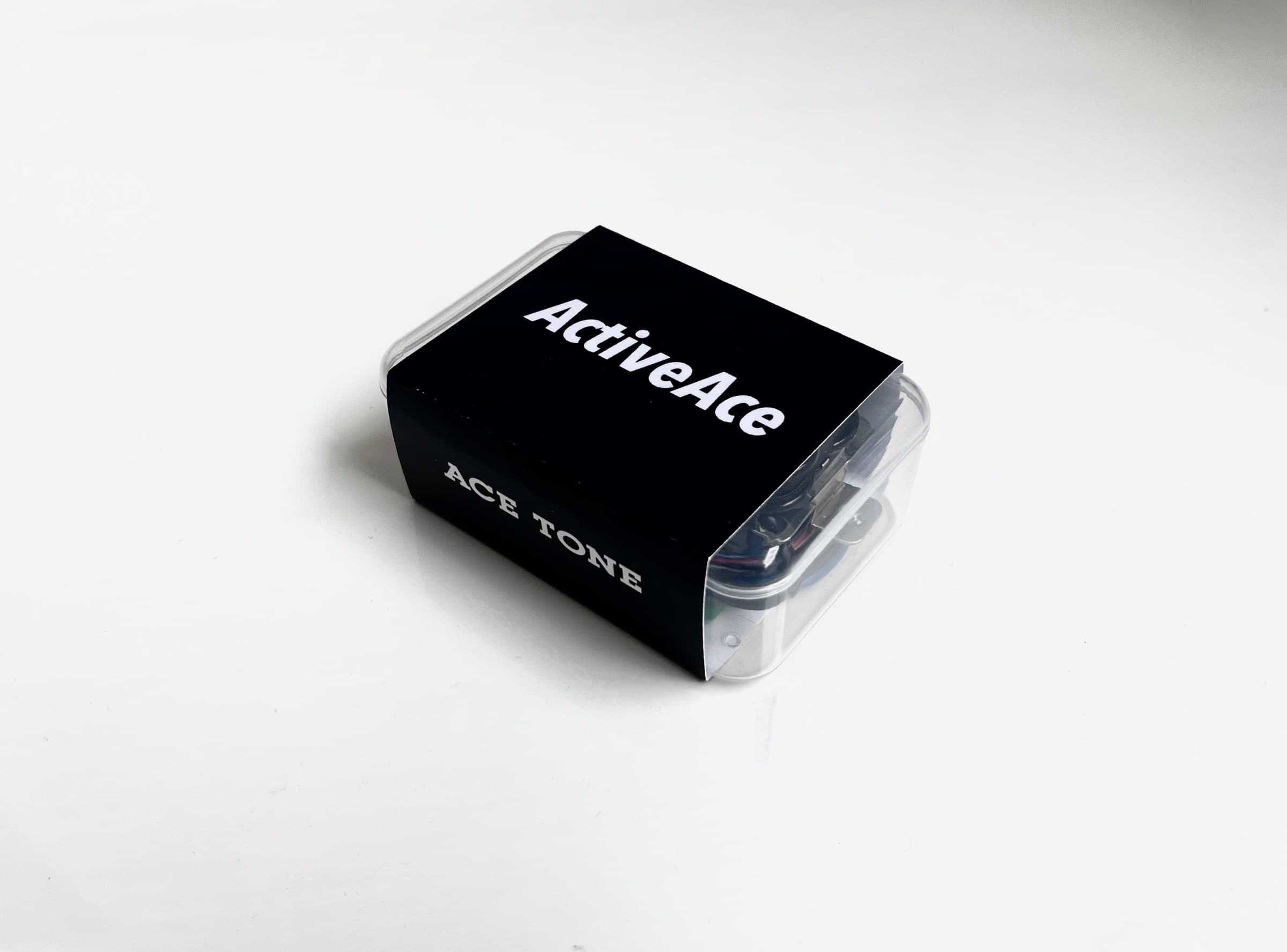

Closed ActiveAce retail packaging seen from above — ActiveAce on the face, ACE TONE on the side

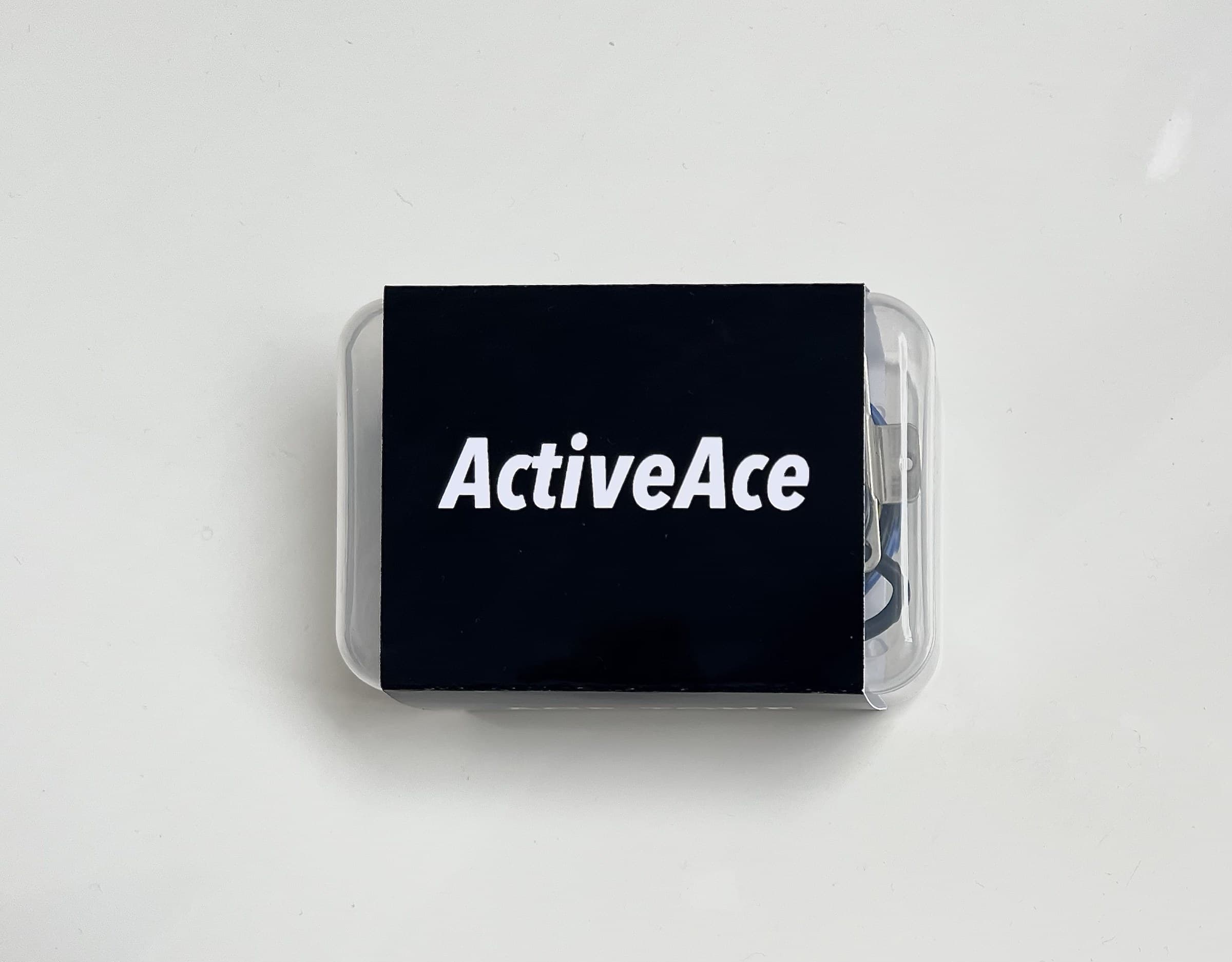

ActiveAce retail packaging, face on, showing the ActiveAce mark

◆ PRODUCT PHOTOGRAPHS / 024 IMAGES

Select a photograph to view it at full size.

REF. 01 / SOURCE PHOTO

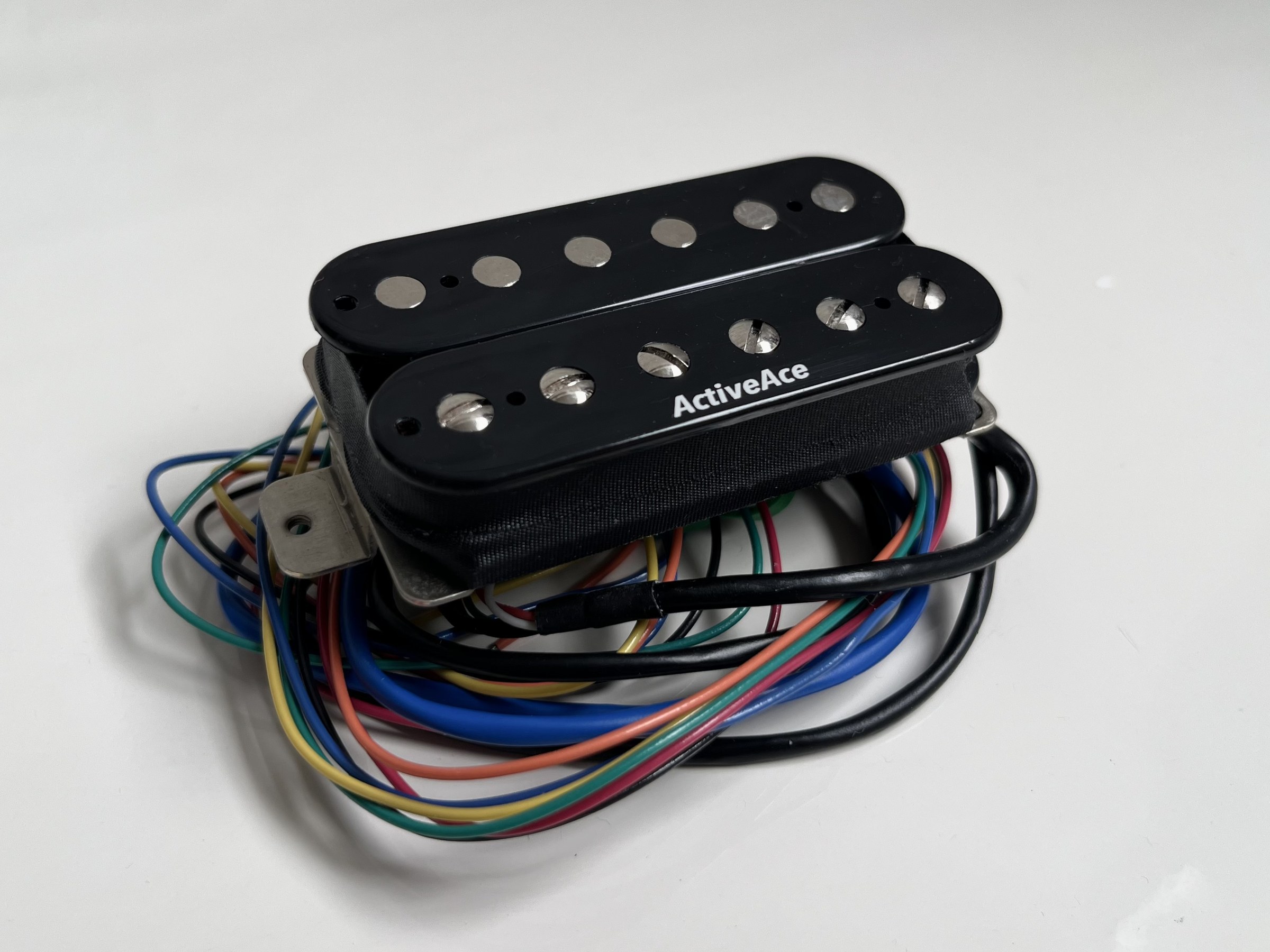

ActiveAce humbucker pickup with its wiring loom, the ActiveAce mark printed on the bobbin

FULL SIZE ↗

REF. 02 / SOURCE PHOTO

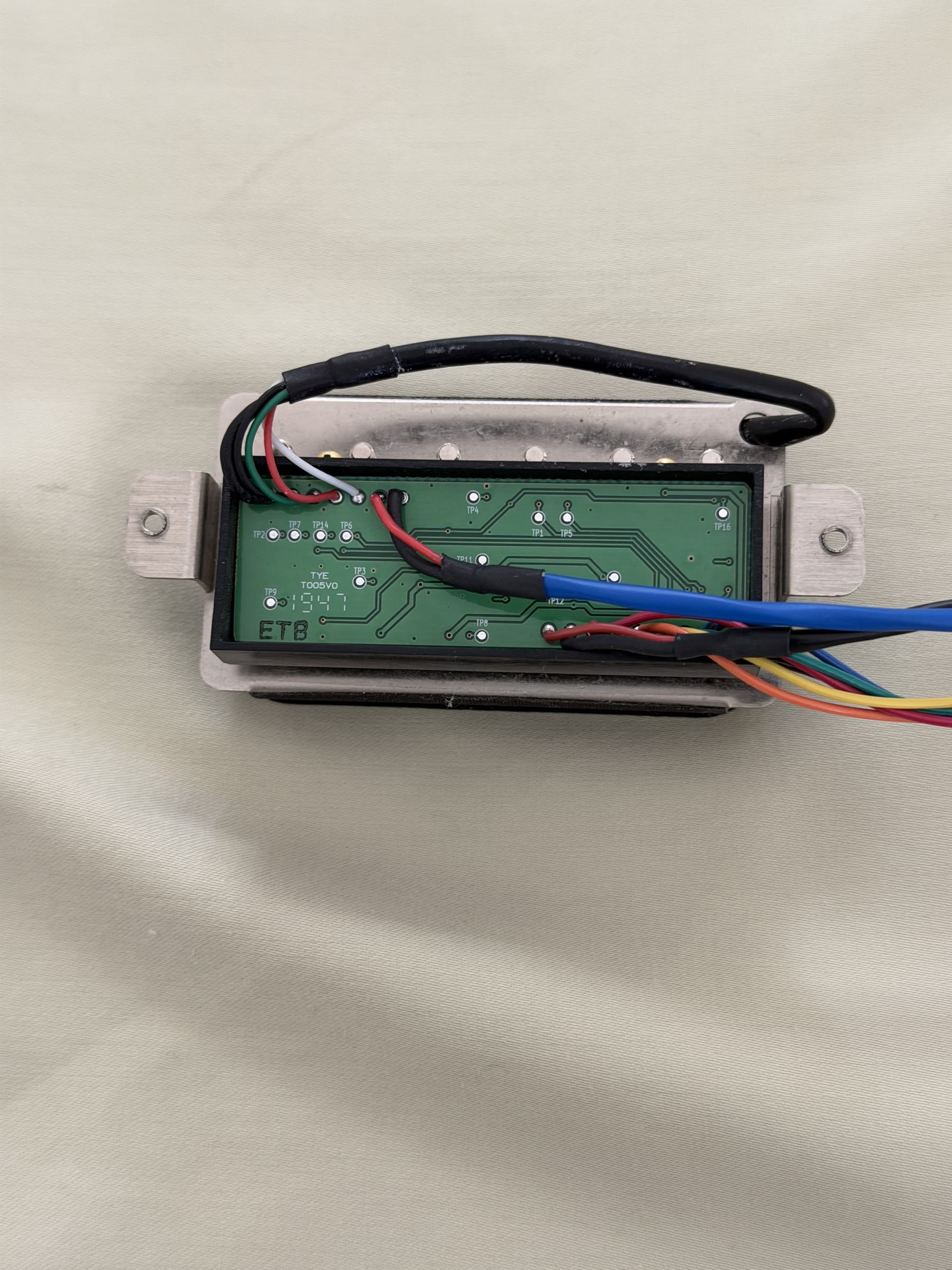

Rear view of the ActiveAce pickup and onboard circuit board

FULL SIZE ↗

REF. 03 / SOURCE PHOTO

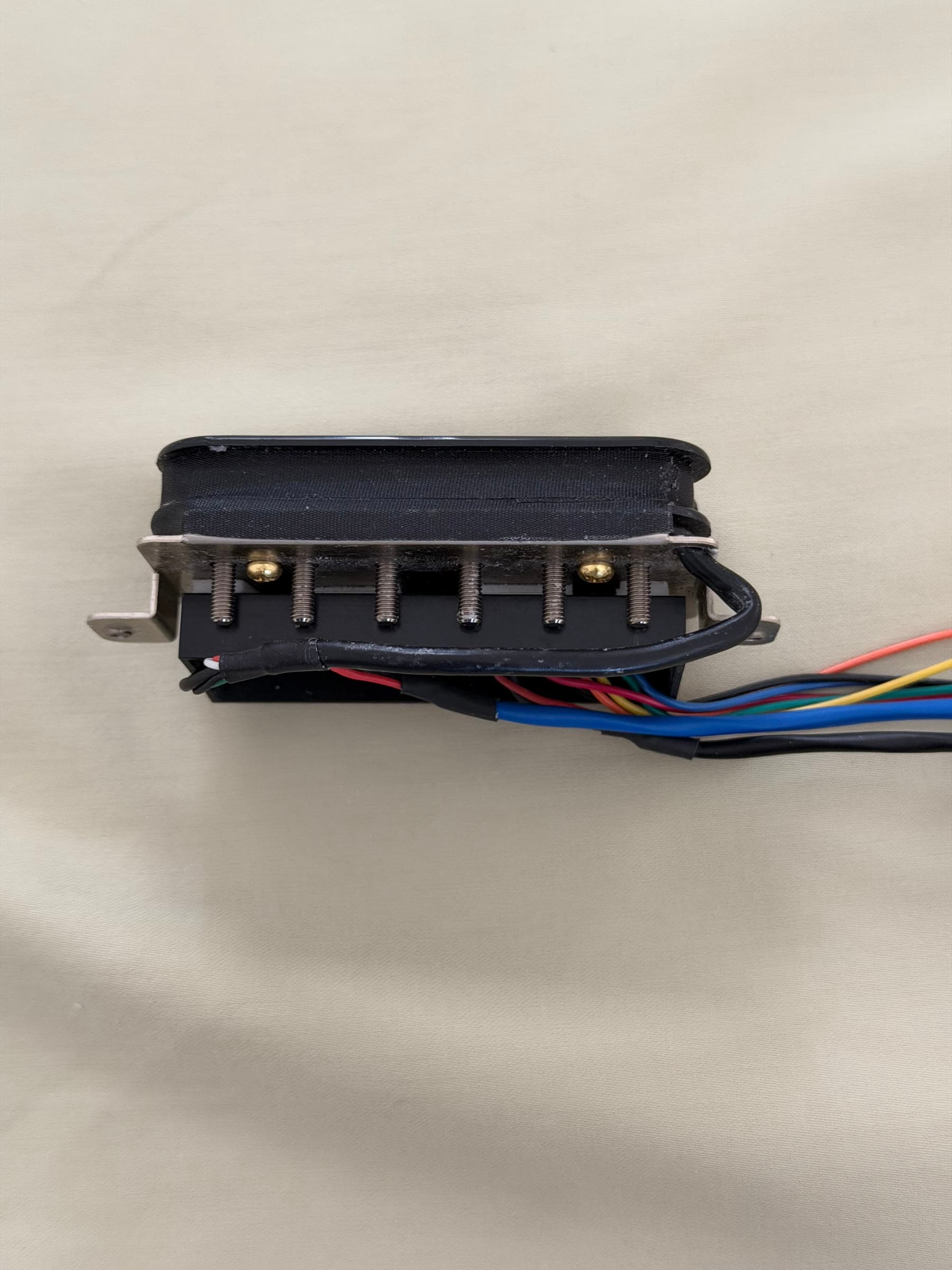

ActiveAce pickup side profile

FULL SIZE ↗

REF. 04 / SOURCE PHOTO

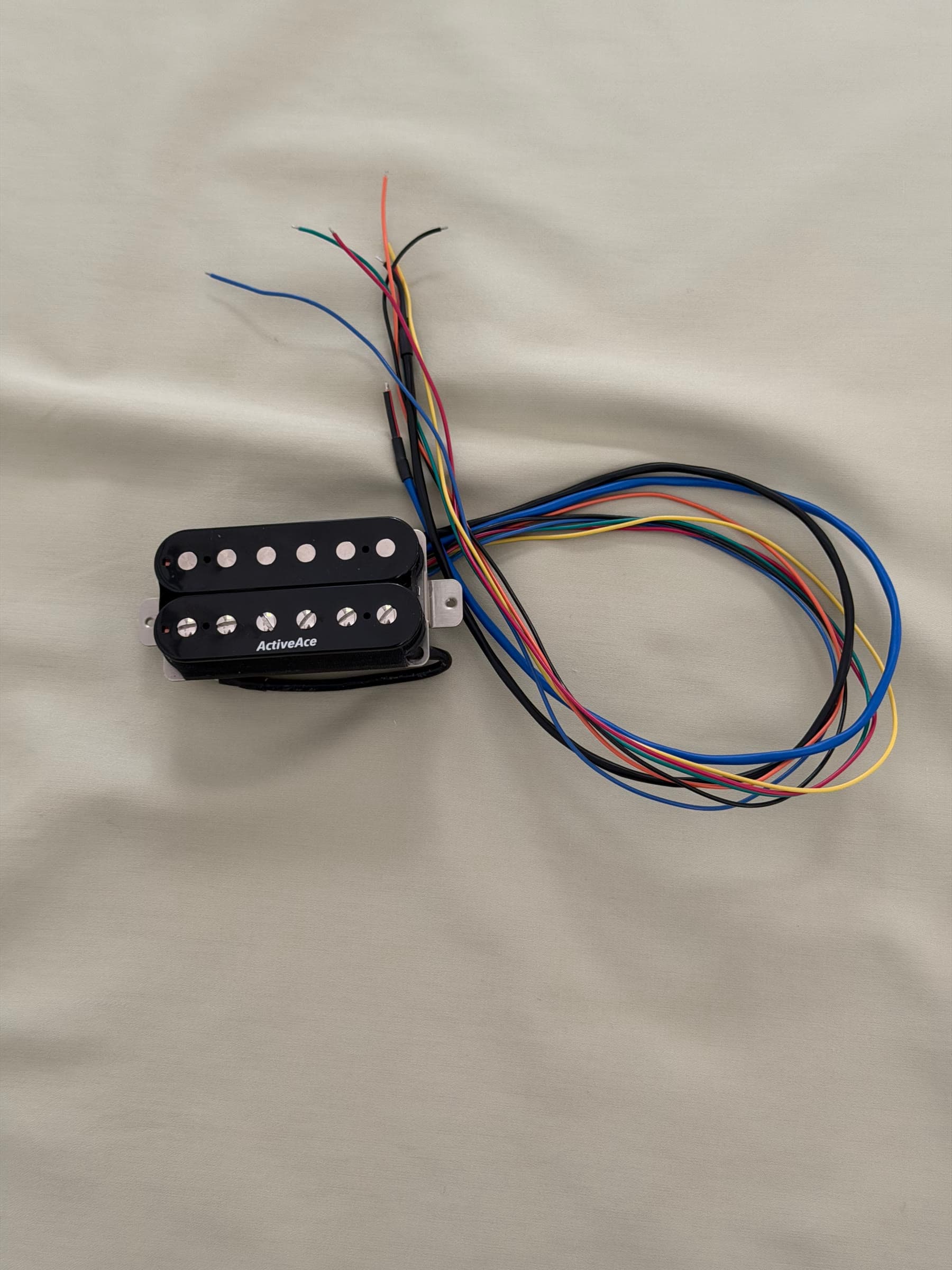

ActiveAce pickup with its complete wiring harness

FULL SIZE ↗

CONTROLSSOUNDSPECIFICATIONSMANUALS

PRODUCT CONTROLSGH-631V

CONTROLS / 03

USING THE CONTROLS

FRONT PANEL

MODE: Three kinds of sound character are available. Contemporary — smooth frequency response from low to high; the response a guitarist knows from a typical active or low-impedance pickup. Traditional — traditional (vintage) passive pickup sound, from the active circuit. Bright — bright sound, similar to a new set of strings; clear and brilliant tone.
COIL TAP: Selects single coil and humbucker sound. No loss of pickup level — the output level of the single coil is automatically increased to match the humbucker output level.
POWER BOOSTER: Output boost of 6 dB across the entire frequency range. This is not a mid booster.
